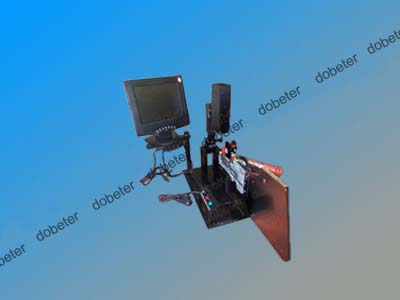

Topaz Feeder Calibration Jig

Topaz Feeder Calibration Jig

Topaz Feeder Calibration Jig is used to calibrate Topaz CL Feeders, such as , 8mm 0402 CL Tapefeeder, 8mm Standard CL Tapefeeder and so on, so these feeders can work more precisely.



Delivery lead time : in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS

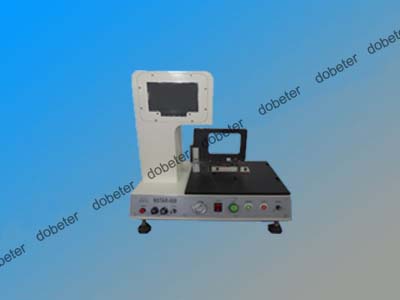

Topaz Feeder Calibration Jig

Topaz Feeder Calibration Jig--Philips Assemblen Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2,EMERALD,EMERALD X, EMERALD X II,SAPPHIRE / COMET,

Topaz Feeder Calibration Jig

1:Product Name:Intellectual Feeder Calibration Jig

2:Model:DBE-FCJ

3: Characteristic

* Easy to manipulate.

* Quite different with the traditional feeder calibration jigs, it has no axixes and guides, just adjust buttons you can move focus with ease, so more durable

* Actual feeding like machine running can be simulated. Also you can control it manually.

* High Definition Industrial CCD with magnifying power 50

* Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.

* Verify and calibrate feeders correctly by using master steel tapes.

* Ligth, beautiful and more durable。

4: Available for feeders such like Panasonic , Fuji , Juki , Yamaha ,Samsung , KME , Siemens , Sanyo etc

5: Power AC / 220V(50Hz)60W

6: Air pressure:4-5kg/cm2

7: Volumne:530mm(L)×350mm(W)×580mm(H)

8: Weight :Net Weight :22 Kg; Gross Weight : 36Kg.

User Manual

LOCK:To lock current position of X axis line and Y axix line

X1: Used to move the X axis line

Y1: Used to move the X axis line

LUM:Cross line of black and white color conversion.

POWER: Power Switch

LED:POWERPower Light

MANUAL:Manual mode.Press this button one time,the feeder will feed one time

AUTO:Auto Mode.Press this button, the feeder will feed continueously.

SPEED:Speed Control

Topaz Feeder Calibration Jig

Part Name:FEEDER JIG ASSY PART No:KM8-M34E0-B1X

Topaz Feeder Calibration Jig

FEATURE

  1. 8-24mm width. Various parts cassettes can be checked.
  2. Actual feeding like machine running can be simulated
  3. 50X CCD; with LED lighting, appearance clearer.
  4. Speed of feeding can be adjusted
  5. Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.
  6. Capable to operate 1 pitch each with the manual Mode and calibrate. Able to test calibrated feeders with the auto function.

C. Specification
