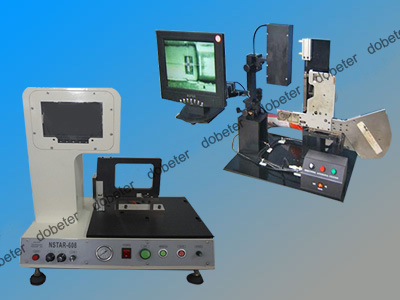

Fuji Feeder Calibration Jig

Fuji Feeder Calibration Jig

fuji feeders calibration jig is used to calibrate the Fuji SMT feeders. There're two kinds of fuji feeders calibration jig, one is used to calibrate the Fuji feeders for Fuji CP6, CP642, CP643, CP7, CP732, CP733, CP742, CP743 CP8, CP842, XP141, XP142, XP143... SMT pick and place machines, with the calibration rule, the pick up point will be shown on the LED display, so you can check whether the pick up point is in the right position and if not, you can calibrate it. Another kind of fuji feeders calibration jig is for Fuji Feeder Fuji, Aimex Feeder.



Delivery lead time : in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS

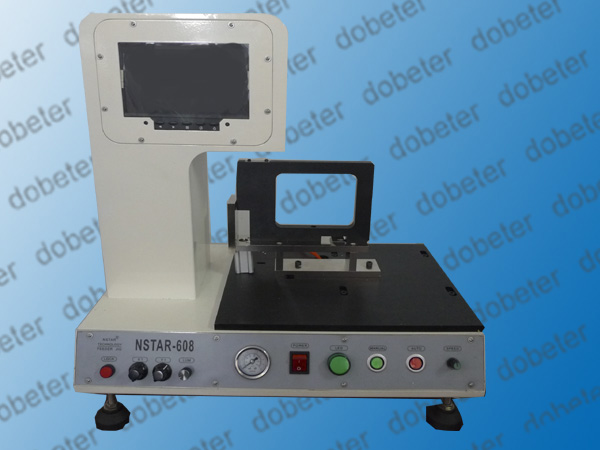

FUJI Feeder Calibration Jig

FUJI Feeder Calibration Jig-- Fuji CP3;CP4;CP6;CP7;IP1; IP2; IP3; QP; QP; XP141;XP142

FUJI Feeder Calibration Jig

1:Product Name:Intellectual Feeder Calibration Jig
2:Model:DBE-FCJ
3: Characteristic
* Easy to manipulate.
* Quite different with the traditional feeder calibration jigs, it has no axixes and guides, just adjust buttons you can move focus with ease, so more durable
* Actual feeding like machine running can be simulated. Also you can control it manually.
* High Definition Industrial CCD with magnifying power 50
* Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.
* Verify and calibrate feeders correctly by using master steel tapes.
* Ligth, beautiful and more durable。
4: Available for feeders such like Panasonic , Fuji , FUJI , Yamaha ,Samsung , KME , Siemens , Sanyo etc
5: Power AC / 220V(50Hz)60W
6: Air pressure:4-5kg/cm2
7: Volumne:530mm(L)×350mm(W)×580mm(H)
8: Weight :Net Weight :22 Kg; Gross Weight : 36Kg.

User Manual


LOCK:To lock current position of X axis line and Y axix line
X1: Used to move the X axis line
Y1: Used to move the X axis line
LUM: Cross line of black and white color conversion.
POWER: Power Switch
LED:POWER Power Light
MANUAL: Manual mode.Press this button one time,the feeder will feed one time
AUTO: Auto Mode.Press this button, the feeder will feed continueously.
SPEED:Speed Control

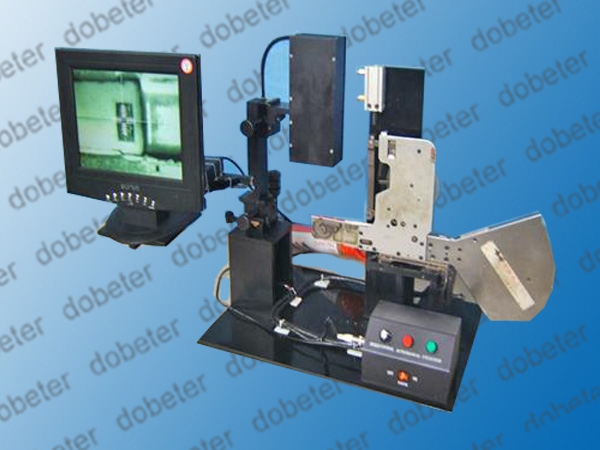

FUJI CP6 CP7

FUJI Feeder Calibration Jig

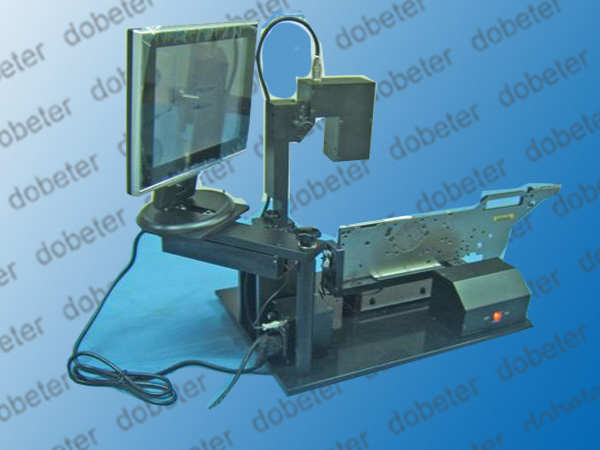

FUJI NXT

SMT Feeder Calibration Jig for

FEATURE

8-24mm width. Various parts cassettes can be checked.

Actual feeding like machine running can be simulated

50X CCD; with LED lighting, appearance clearer.

Speed of feeding can be adjusted

Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.

Capable to operate 1 pitch each with the manual Mode and calibrate. Able to test calibrated feeders with the auto function.

C. Specification
