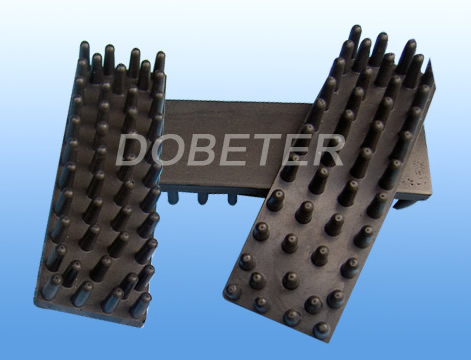

pcb support tool

pcb support tool


We all know that it’s a trouble to set up a double sides PCB board with high density of components if you use pins, pillars , posts..., now you can solve this problem with ease with our PCB Support tool Blocks/Matrix.Our PCB Support tool Blocks/Matrix is very soft, so all components on your PCB board will not be damaged, also our PCB Support tool Blocks/Matrix is anti-static, it avoids static damages your components. Our PCB Support tool Blocks/Matrix is very durable, also you can use it with ease.

Delivery lead time : in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS

pcb support tool

Characteristics:

※ Just put the PCB board on the PCB Support Pin Blocks/Matrix , you needn’t do any other things, it really save your time.

※ Our PCB Support Pin Blocks/Matrix is very soft, so all components on your PCB board will not be damaged.

※ Our PCB Support Pin Blocks/Matrix is anti-static, it avoids static damages your components.

※ Durable—Our PCB Support Pin Blocks/Matrix  can be repeatedly used more than 6000hours with the temperature lower than 100℃

※Our PCB Support Pin Blocks has a magnetic bottom, what you need is justput it on the platform, or for some special machine, it can be fixes with screws or bolts. Now we can offer you PCB Support Pin Blocks for most common machines such as Philips, Fuji, Panasonic, Siemen, Universal, Juki and so on.

pcb support tool blocks

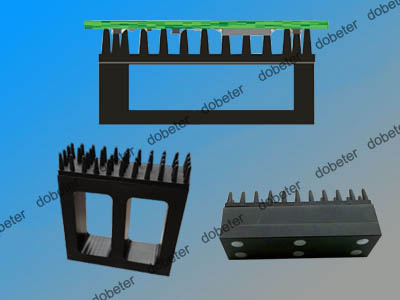

Dimensions: 125*40*20mm(L*W*H), this is only for the rubber part, see below picture. it can be cut into any size as you request.

pcb support tool

The total height with body for different machine are quite different, we also can make custom total height as your request. Below is a list of the height for those commonly used machines :

pcb support block yamaha

pcb support block yamaha

pcb support block samsung

pcb support block samsung

pcb support block of assembleon

pcb support block of assembleon

We also offer you gridlock pcb support, they are used for screen printers :

gridlock pcb support
