feeder calibration tool assembleon

feeder calibration tool assembleon


feeder calibration tool assembleon is used to calibrate assembleon feeders, such as assembleon CL / FV feeders, assembleon FT / FS2 feeders, mainly 8mm, 12mm, 16mm and 24mm feeders.



Delivery lead time :　in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS

Facebook TwitterLinkedinGoogle + Email

Description for feeder calibration tool assembleon

feeder calibration tool assembleon DBE-FCJ-ASB-NEW

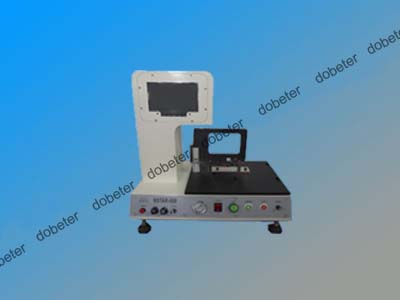

feeder calibration tool assembleon 1

1：Product Name:Intellectual Feeder Calibration Jig

2：Model：DBE-FCJ-ASB-NEW

3: Characteristic

* Easy to manipulate.

* Quite different with the traditional feeder calibration jigs, it has no axixes and guides, just adjust buttons you can move focus with ease, so more durable

* Actual feeding like machine running can be simulated. Also you can control it manually.

* High Definition Industrial CCD with magnifying power 50

* Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.

* Verify and calibrate feeders correctly by using master steel tapes.

* Ligth, beautiful and more durable。

4: Available for feeders such like Panasonic , Fuji , Juki , Yamaha ,Samsung , KME , Siemens , Sanyo etc

5: Power AC 110V / 220V 60W

6: Air pressure:4-5kg/cm2

7: Volumne：530mm(L)×350mm(W)×580mm(H)

8: Net Weight ：22 Kg; Gross Weight : 36Kg.

feeder calibration tool assembleon-DBE-FCJ-ASB-TRD

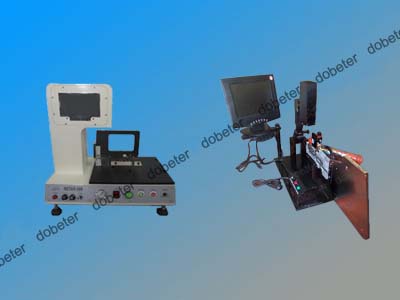

feeder calibration tool assembleon

FEATURE

8-24mm width. Various parts cassettes can be checked.

Actual feeding like machine running can be simulated

50X CCD; with LED lighting, appearance clearer.

Speed of feeding can be adjusted

Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.

Capable to operate 1 pitch each with the manual Mode and calibrate. Able to test calibrated feeders with the auto function.

C. Specification

assembleon feeder calibration tool-KM8-M34E0-B1X

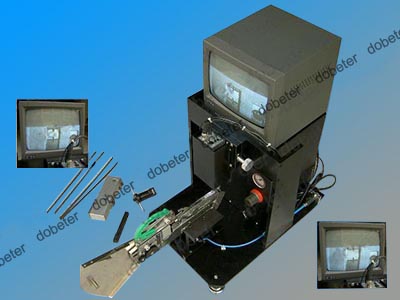

Assembleon Feeder Calibration Tool 2

Part Name：FEEDER JIG ASSY PART No：KM8-M34E0-B1X
