juki feeder calibration jig

juki feeder calibration jig

juki feeder calibration jig is applied for Juki pick and place SMT machines such as KE-2010 , KE-2020 , KE-2030 , KE-2040 , KE-2050 , KE-2060 ,KE-2050R , KE2055R , KE-2060R ,KE-2070 , KE-2080 , KE-2080R ,KE-3010 , KE-3020 , KE-3020R , KE-3020V , KE-3020VR FX-1 , FX-1R , FX-2 , FX-3 , FX-3R ,KE-750, KE-760, KE-730, KE-740, KE-720, KE-710 and so on.



Delivery lead time :　in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS

Facebook TwitterLinkedinGoogle + Email

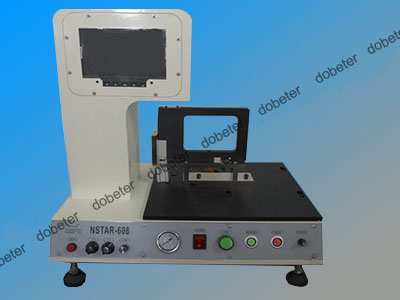

Juki Feeder Calibration Jig

juki feeder calibration jig-DBE-FCJ-JUKI-TRD

juki feeder calibration jig

FEATURE

8-24mm width. Various parts cassettes can be checked.

Actual feeding like machine running can be simulated

50X CCD; with LED lighting, appearance clearer.

Speed of feeding can be adjusted

Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.

Capable to operate 1 pitch each with the manual Mode and calibrate. Able to test calibrated feeders with the auto function.

C. Specification

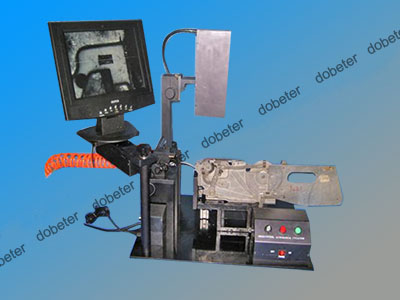

juki feeder calibration jig-DBE-FCJ-JUKI-NEW

juki feeder calibration jig

1：Product Name:Intellectual Feeder Calibration Jig

2：Model：DBE-FCJ

3: Characteristic

* Easy to manipulate.

* Quite different with the traditional feeder calibration jigs, it has no axixes and guides, just adjust buttons you can move focus with ease, so more durable

* Actual feeding like machine running can be simulated. Also you can control it manually.

* High Definition Industrial CCD with magnifying power 50

* Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.

* Verify and calibrate feeders correctly by using master steel tapes.

* Ligth, beautiful and more durable

4: Available for feeders such like Panasonic , Fuji , Juki , Yamaha ,Samsung , KME , Siemens , Sanyo etc

5: Power AC 110V / 220V 60W

6: Air pressure:4-5kg/cm2

7: Volumne：530mm(L)×350mm(W)×580mm(H)

8: Net Weight ：22 Kg; Gross Weight : 36Kg.
