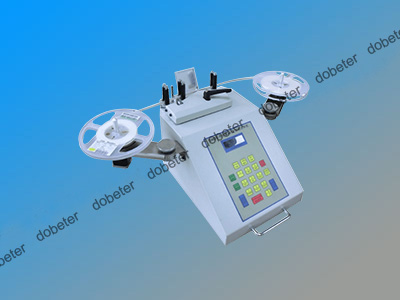

smd chip component counter

smd chip component counter


smd chip component counteris used for automatically counting reel SMD and IC packaging components.It can count out an entire reel or a specific number of parts, the LCD screen will display the number of the components, it also can be equipped with barcode scanner and printer to make some report. Available tape pitch 2 ,4, 8, 12, ... .48, 52, 56mm, available tape width: 8, 12, 16,24, 32, 44, 56mm.

Delivery lead time :　in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS

Facebook TwitterLinkedinGoogle + Email

SMD chip component counter

smd chip component counter



smd chip component counter



smd chip component counter

smd component counter

Part number :DBE- SCC

Description :smd chip component counter is used for automatically counting reel SMD and IC packaging components.It can count out an entire reel or a specific number of parts, the LCD screen will display the number of the components, it also can be equipped with barcode scanner and printer to make some report. Available tape pitch 2 ,4, 8, 12, ... .48, 52, 56mm, available tape width: 8, 12, 16,24, 32, 44, 56mm.

Specifications:
1, Voltage:AC 210 -240V Or 110V
2 Features: 200 cm, 600 PCS/min
3, Power: 30W
4, Counting NO.: -99999~99999pcs
5, Machine size: 770mm(L)*340mm(W)*190mm(H)
6, Weights: 10.5kg

Features:

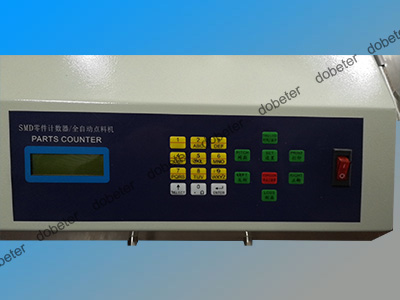

LCD screen will display the number of the components

It can count out an entire reel or a specific number of parts

Available tape pitch 22 ,4, 8, 12, ... .48, 52, 56mm

Available tape width: 8, 12, 16,24, 32, 44, 56mm.

it also can be equipped with barcode scanner and printer to make some report.

smd chip component counter

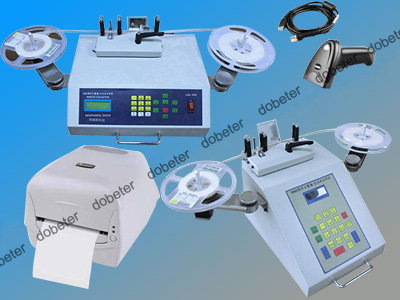

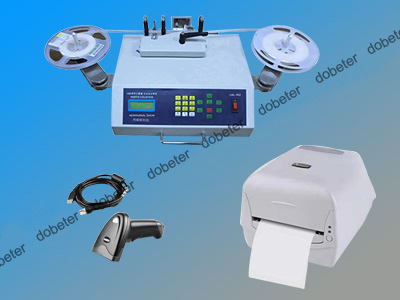

smd component counter with printer and scanner

Part number :DBE- SCC

In this case, the counter can connect with the scanner and printer, the printer can print the result.

smd chip component counter

smd component counter

Part number :DBE- SCC-2

It's quite the same as the DBE- SCC, the only difference is shape.

1-4 is the same as the DBE- SCC.

5, Machine size: 670mm(L)*400mm(W)*270mm(H)
6, Weights: 11kg
