Assembleon Topaz Feeder

Name: Assembleon Topaz Feeder
Brand: Dobeter

Assembleon Topaz Feeder, GEM, CL, Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2,EMERALD,EMERALD X, EMERALD X II,SAPPHIRE / COMET

Delivery lead time :　in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS

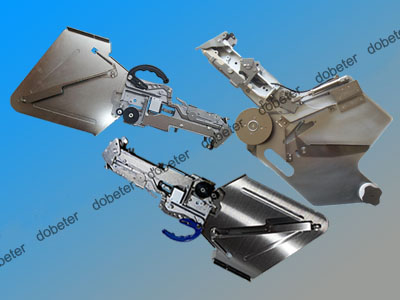

Assembleon Topaz Feeder

For Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2,EMERALD,EMERALD X, EMERALD X II,SAPPHIRE / COMET

Type
8mm 01005
CL Tapefeeder
8mm 0201
CL Tapefeeder
8mm 0402
CL Tapefeeder
8mm Standard
CL Tapefeeder
12mm CL
Tapefeeder
16mm CL
Tapefeeder
24mm CL
Tapefeeder
32mm CL
Tapefeeder

Part number
9498 396 02008 PA 2903-96
8mm feeder for 01005, 2mm pitch, Green Handle Yellow Band CL-822-15
Part nr.: 9498 396 00339 PA 2903-77
8mm feeder for 0201, 2mm pitch Green Handle CL-823-15
Part nr.: 9498 396 00340
Alternate Part Number: 9498 396 00498
PA2903-78
8 mm feeder for 0402, 2mm pitch, reel Blue Handle CL-825-15
Part nr.: 9498 396 00341 PA 2903-79
8 mm feeder, STD, 4mm pitch, reel Black Handle CL-84-15
Part nr.: 9498 396 00342 PA 2903-88
12mm CL feeder, 4-12mm pitch, 15" Reel Holder Black Handle CL-12
Part nr.: 9498 396 00338 PA 2903-27
16mm feeder, 4-16mm pitch, 15" Reel Holder Black Handle CL-16
Part nr.: 9965 000 15825 PA 2903-38
24mm feeder, 4-24mm pitch, 15" Reel Holder CL-24
Part nr.: 9965 000 15826 PA 2903-48
32mm feeder, 8-32 mm pitch, 15" Reel Holder CL-32

Depth (mm)
2.5
2.5
2.5
2.5
11
15
15

Feeding pitch (mm)
2
2
4
4,8,12
4,8,12,16
4,8,12,16,20,24
4,8,12,16,20,24,28,32

Assembleon Topaz Feeder for Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2,EMERALD,EMERALD X, EMERALD X II,SAPPHIRE / COMET

Type
44mm CL
Tapefeeder
56mm CL
Tapefeeder
72MM CL
Tapefeeder

Part number
Part nr.: 9965 000 15827 PA 2903-58
44mm feeder, 8-36 mm pitch, 15" Reel Holder CL-448
Part nr.: 9965 000 15828 PA 2903-68
56mm feeder, 8-36mm pitch, 15" Reel Holder CL-56
Part nr.: 9498 396 01977 PA 2903-67
72 6mm feeder, 8-36mm pitch, 15" Reel Holder CL-72

Depth (mm)
15
15
15

Feeding pitch (mm)
4,8,12,16,20,24,28,32,36
4,8,12,16,20,24,28,32,36
4,8,12,16,20,24,28,32,36

Assembleon Topaz Feeder for Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2,EMERALD,EMERALD X, EMERALD X II,SAPPHIRE / COMET

8mm 0402 CL Tapefeeder 8mm 0402 CL Tapefeeder Part nr.: 9498 396 00340 2903-78 8 mm feeder for 0402, 2mm pitch, reel Blue Handle CL-825-15

Assembleon Topaz Feeder for Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2,EMERALD,EMERALD X, EMERALD X II,SAPPHIRE / COMET

8mm Standard CL Tapefeeder 8mm Standard CL Tapefeeder Part nr.: 9498 396 00341 PA 2903-79 8 mm feeder, STD, 4mm pitch, reel Black Handle CL-84-15

Assembleon Topaz Feeder for Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2,EMERALD,EMERALD X, EMERALD X II,SAPPHIRE / COMET

8mm 0201 CL Tapefeeder Part nr.: 9498 396 00339 PA 2903-77 8mm feeder for 0201, 2mm pitch Green Handle CL-823-15

16mm CL Tapefeeder Part nr.: 9498 396 00338 PA 2903-27 16mm feeder, 4-16mm pitch, 15" Reel Holder Black Handle CL-16

24mm CL Tape Feeder Part nr.: 9965 000 15825 PA 2903-38 24mm feeder, 4-24mm pitch, 15" Reel Holder
CL-24

12mm CL Tapefeeder Part nr.: 9498 396 00342 PA 2903-88 12mm CL feeder, 4-12mm pitch, 15" Reel Holder Black Handle CL-12

32mm CL Tapefeeder Part nr.: 9965 000 15826 PA 2903-48 32mm feeder, 8-32 mm pitch, 15" Reel Holder CL-32

44mm CL Tapefeeder Part nr.: 9965 000 15827 PA 2903-58 44mm feeder, 8-36 mm pitch, 15" Reel Holder CL-44

56mm CL Tapefeeder Part nr.: 9965 000 15828 PA 2903-68 56mm feeder, 8-36mm pitch, 15" Reel Holder CL-56

72mm CLi Tapefeede Part nr.: 9498 396 01977 PA 2903-67 72mm feeder, 8-36mm pitch, 15" Reel Holder CLi-72

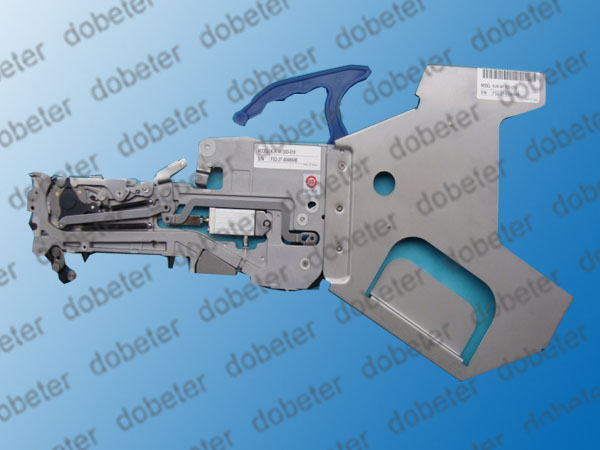

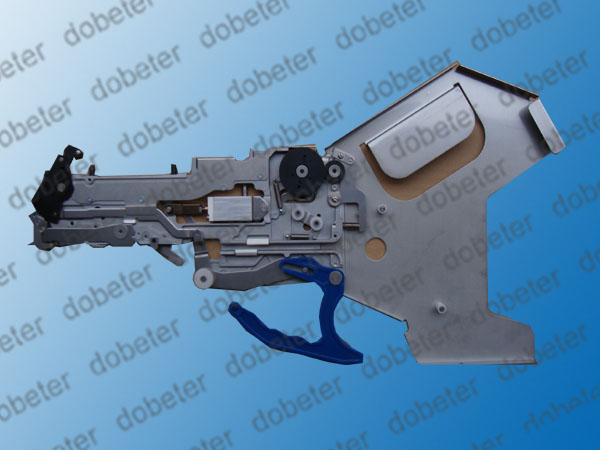

FS2 8*2

FT 8*2

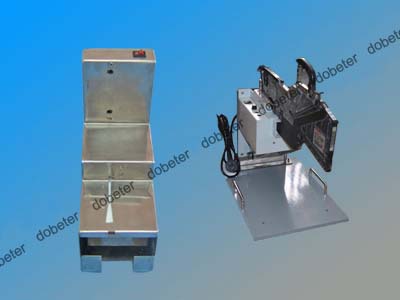

Assembleon Topaz Feeder Loading Unit(Station )

Assembleon Topaz Feeder PARTS for Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2,EMERALD,EMERALD X, EMERALD X II,SAPPHIRE / COMET

ASSEMBLEON STICK FEEDER for Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2,EMERALD,EMERALD X, EMERALD X II,SAPPHIRE / COMET

ltage:24V/110V/220V Size:430*60*60 Applied to: Topaz ,MG ,EMERALD..

Voltage:24V/110V/220V Size:430*100*60 Applied to: Topaz ,MG ,EMERALD...

Voltage:24V/110V/220V Size:430*150*60 Applied to: Topaz ,MG ,EMERALD..

Voltage:24V/110V/220V Size:430*100*60 Applied to: MC series

ASSEMBLEON TRAY FEEDER for Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2,EMERALD,EMERALD X, EMERALD X II,SAPPHIRE / COMET

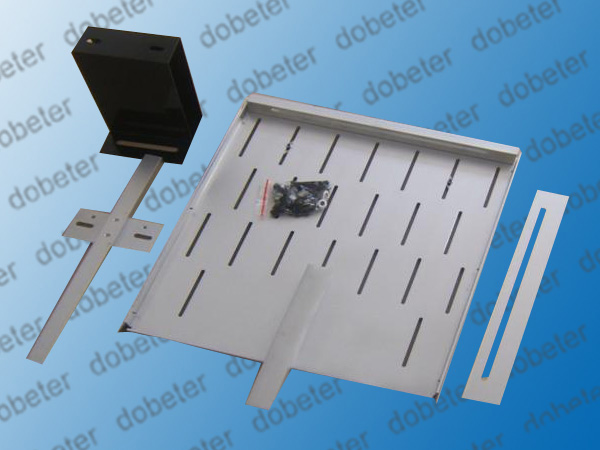

ASSEMBLEON Tray Feeder for MC Series

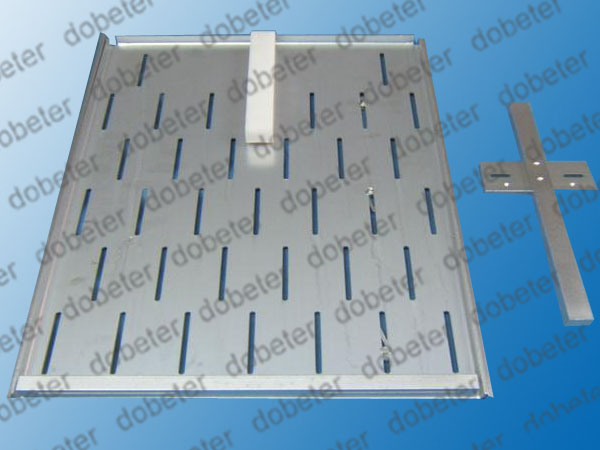

ASSEMBLEON Tray Feeder for Topaz Series

Assembleon Topaz Feeder STORAGE TROLLEY ,CART for Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2,EMERALD,EMERALD X, EMERALD X II,SAPPHIRE / COMET

Size:L800*W600*H1100
Description:40PCS/Layer,2 Layers
Applied to: ASSEMBLEON

Size:L800*W600*H1100
Description:40PCS/Layer,2 Layers
Applied to: ASSEMBLEON MC Series

Assembleon Topaz Feeder CALIBRATION JIG for Topaz, Topaz X, Topaz XII, Sapphire-Xii, MG1,MG2,EMERALD,EMERALD X, EMERALD X II,SAPPHIRE / COMET

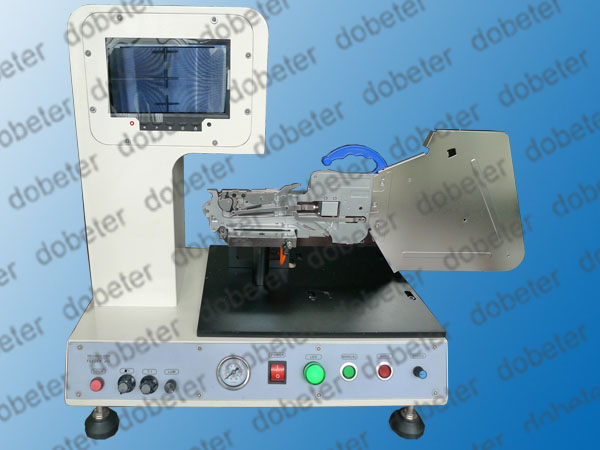

Intellectual Feeder Calibration Jig

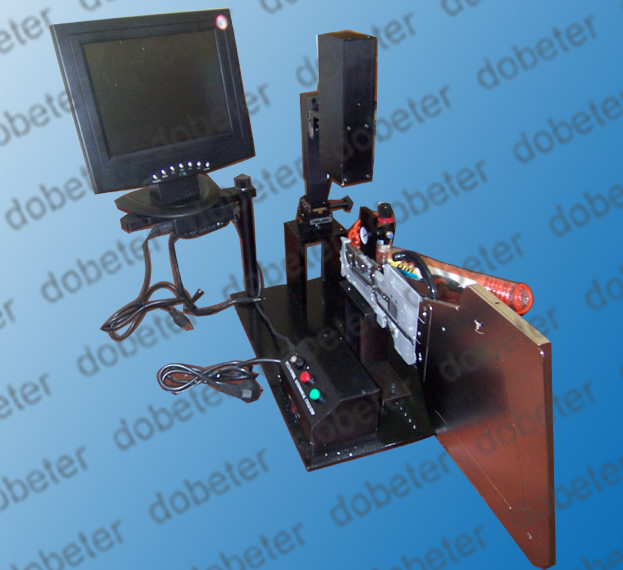

Assembleon Topaz Feeder Calibration Jig

Traditonal Feeder Calibration Jig, with X, Y, Z axises

Through years of efforts, we've developed Philips Assembleon GEM series Assembleon Topaz Feeder(Topaz ,Emerld, Opal, Sapphire,) ,including

Type
1. Philips CL 8x2mm Feeder KW1-M1300-020
2. Philips GEM 08x02 Feeder PA2903/74
3. Philips GEM 8mm Feeders PA2903/79
4. Philips GEM 12mm Feeders PA2903/
5. Philips GEM 16mm Feeders Variable Pitch
6. Philips GEM 24mm Feeders PA2903/79
7. Philips GEM 32mm Feeders PA2903/79
8. Philips GEM 44mm Feeders PA2903/79
9. Philips GEM 56mm Feeder
10. Philips GEM 72mm Feeder
11. Philips CL 8x2mm Feeders for 0201 components

These products look not only in apperance but also in quality are quite the same as original ones.We also offer you all Philips feeder spare parts, such asTAPE GUIDE ASSY, BACK STOPPER,SPROCKET AXIS ASSY,MULTI CYLINDER,SPRING,KNOCK PIN,INDENTATION LVR ASSY,DRIVE ROLLER ASSY,IDLE ROLLER ASSY and so on.
