smt feeder calibration jig yamaha

Name: smt feeder calibration jig yamaha
Brand: Dobeter

smt feeder calibration jig yamaha is used to calibrate yamaha feeders, such as Yamaha CL / FV feeders, Yamaha FT / FS2 feeders, mainly 8mm, 12mm, 16mm and 24mm feeders.

Delivery lead time :　in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS

Description for smt feeder calibration jig yamaha

yamaha feeder calibration jig-DBE-FCJ-YMH-NEW

1：Product Name:Intellectual Feeder Calibration Jig
2：Model：DBE-FCJ
3: Characteristic
* Easy to manipulate.
* Quite different with the traditional feeder calibration jigs, it has no axixes and guides, just adjust buttons you can move focus with ease, so more durable
* Actual feeding like machine running can be simulated. Also you can control it manually.
* High Definition Industrial CCD with magnifying power 50
* Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.

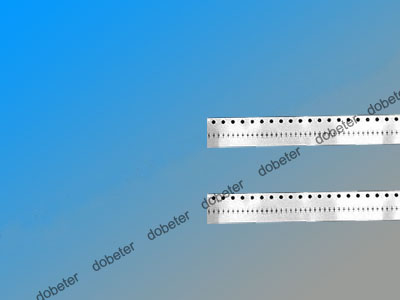

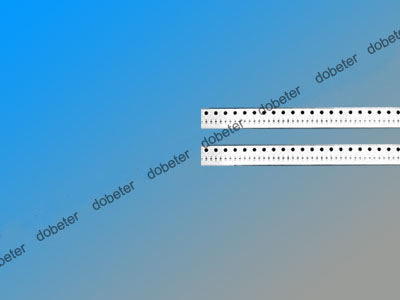

* Verify and calibrate feeders correctly by using master steel tapes.
* Ligth, beautiful and more durable。
4: Available for feeders such like Panasonic , Fuji , Juki , Yamaha ,Samsung , KME , Siemens , Sanyo etc
5: Power AC 110V / 220V 60W
6: Air pressure:4-5kg/cm2
7: Volumne：530mm(L)×350mm(W)×580mm(H)
8: Net Weight ：22 Kg; Gross Weight : 36Kg.

yamaha feeder calibration jig-DBE-FCJ-YMH-TRD

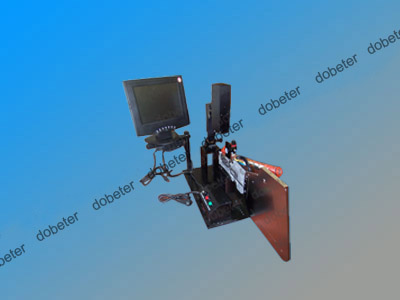

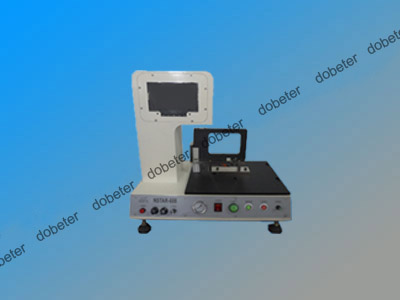

yamaha smt feeder calibration tool

FEATURE

8-24mm width. Various parts cassettes can be checked.
Actual feeding like machine running can be simulated
50X CCD; with LED lighting, appearance clearer.
Speed of feeding can be adjusted
Through a monitor, capable to calibrate all different Sizes and different kinds of feeders using the built-in Line generator.
Capable to operate 1 pitch each with the manual Mode and calibrate. Able to test calibrated feeders with the auto function.

C. Specification
