Home>smt tools equipments>solder station

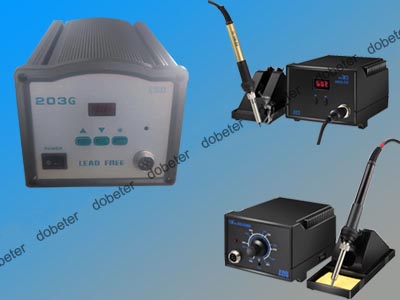

solder station

solder station


solder station - Our solder station is with accurate temperature control, you can set the temperature from 200 to 500 or 480 degrees using the knob or button on the station, It is ESD Safe and with long life ceramic heat element, the tip is removable. This solder station has a power of 60 Watt, which is sufficient for solder most electronic.

Delivery lead time :　in stock

Payment : TT , PayPal, CreditCard, Western Union

MOQ : 1PCS

Facebook TwitterLinkedinGoogle + Email

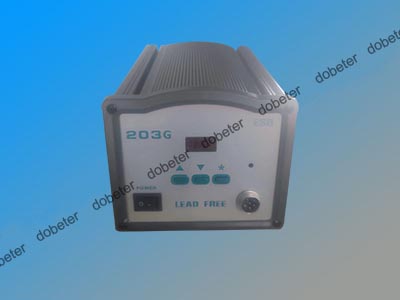

soldering station 203g

soldering station 203g

soldering station 203g with a 150 W heating power. Designed for professional soldering electronic components using lead-free solders. it's with high frequency current heating ,fast heating and rapid thermal recovery , also it is compatible with various types of soldering iron tips...

Feature:

High frequency current heating.
Suitable for lead free soldering.
Fast heating and rapid thermal recovery.
Microprocessor control.
Temperature set by pressing keys and calibrate it digitally.
high power soldering station (150 W)
Compatible with various types of soldering iron tips.
Auto sleeping and auto shut-off mode.
Station parameters interlock by means of PIN code.
ESD safe design.

Specification :
Power supply: 220V or 110V
Handle power: 36V AC
Max. station power: 150 W
Heating method: RF current (400 kHz)
Temp. rise: 25 seconds (20 ° C - 350 ° C)
Temperature stability : ±2 °C (stationary air, no load)
Ground resistance: <2ohm
Grounding potential: <2mV
Station dimensions (WxDxH): 130 x 215 x 105 mm
Gross Weight: 4.5 kg

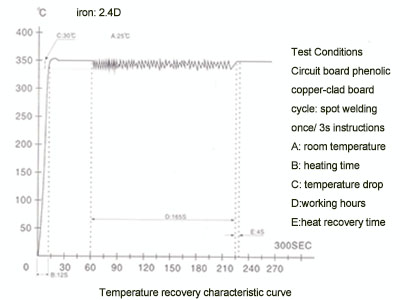

Temperature recovery characteristic curve

soldering station 203g



soldering station 203g

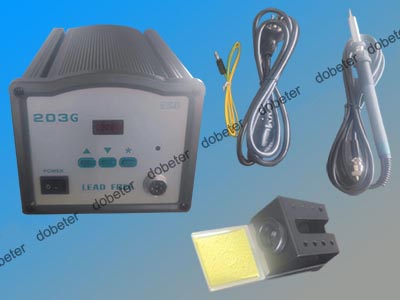

Package Contents

soldering station 203g main unit, soldering iron, power cord, stand for soldering iron, soldering tip, sponge,

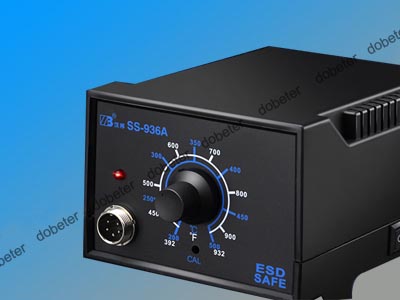

936A solder station

936A solder station

Specifications:
Temperature Stability: Adjustable ±5℃
Voltage: AC 220V/50Hz
Power: 60W
Temperature Range: 200℃ - 500℃/392℉~916℉
Station Size: Approx.140*110*90mm

936B solder station

936B solder station

Specifications:
Temperature Stability: Adjustable ±5℃
Voltage: AC 220V/50Hz
Power: 60W
Temperature Range: 200℃ - 480℃/392℉~916℉
Station Size: Approx.140*110*90mm

938A solder station

938A solder station

Specifications:
Temperature Stability: Adjustable ±5℃
Voltage: AC 220V/50Hz
Power: 60W
Temperature Range: 200℃ - 500℃/392℉~916℉
Station Size: Approx.140*110*90mm
